500x1000mm Outdoor Rental LED Screen With 3840Hz Refresh Rate
P3.91 500x1000mm Die Cast Aluminum Outdoor Rental LED Display With 3840Hz Refresh Rate
Application Of Outdoor Rental LED Display
In addition to the selection of the screen body, the LED stage screen also needs to select a suitable control system. In general, the LED stage screen has a large area and high pixels, which requires a high number of sending cassettes, and sometimes requires multiple control cards for cascade splicing control. If the display effect is better, we usually need to use the video processor, which can splice and cut the video to achieve multi-window, picture-in-picture, strong scalability, and more delicate and smooth video effect. n Due to the particularity of LED rental stage screen, it generally adopts standardized box structure, which is easy to disassemble and assemble, light in weight and convenient in transportation. The box body is light and thin, can be quickly installed, removed and transported, and is suitable for large-area rental and fixed installation application places. Finally, it is necessary to provide professional training for operators, so that they can carry out basic maintenance of the display screen, such as analysis and treatment of common faults, familiarity with the control system and video processing, and detection and adjustment of the corresponding supporting equipment, so as to ensure the stable and safe operation of the LED stage screen.
Specification Of Indoor Rental LED Display
| | AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Feature Of Outdoor Rental LED Display
TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm and P4.81mm Features are:
1, Adjustable Angle lock for curve Application via Rotary Lock
2, Advanced Flash Function: The Calibration Data can be Saved to the receiver card and used automatically
3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via Magnets
4, Rubber seal for the back of the module, to create maximum protection against rain or moisture
5, Easy to use corner protectors, push it and corner protector released
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.

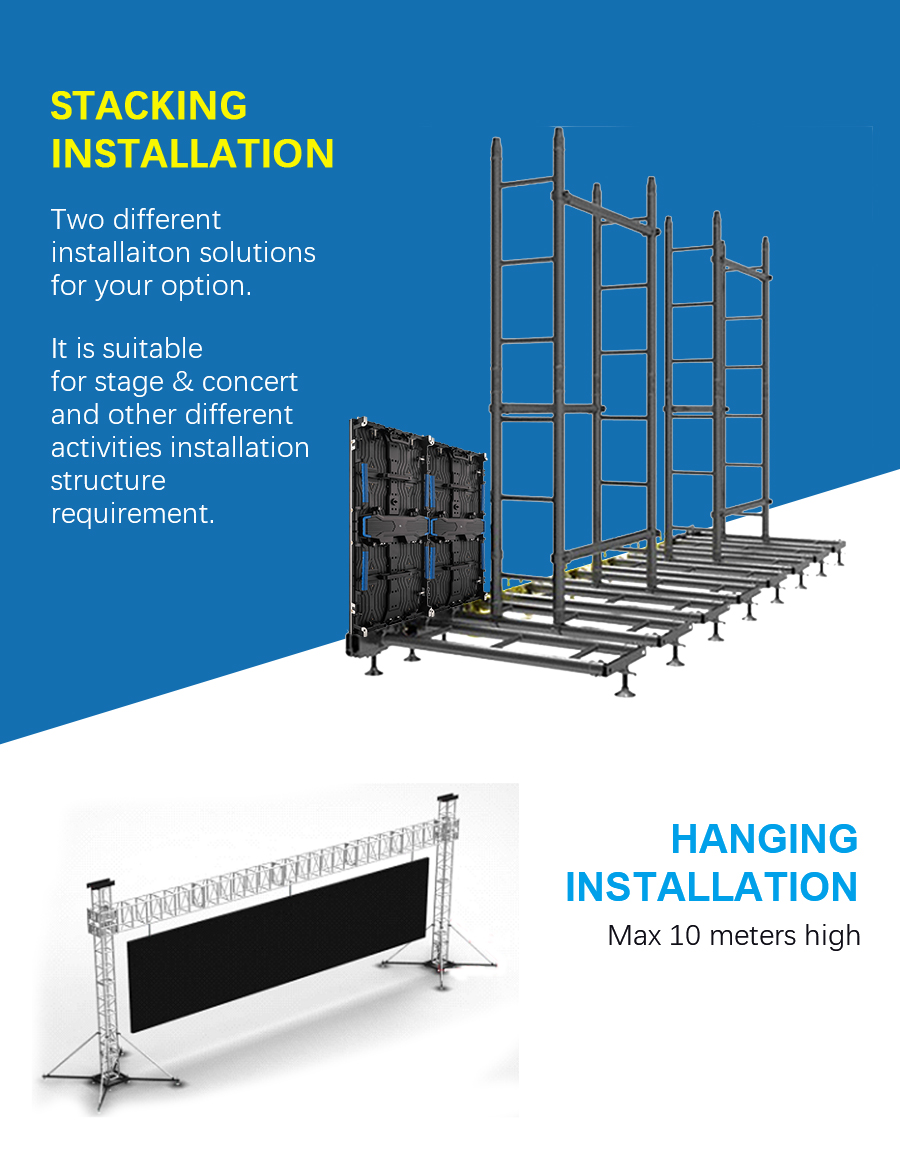

Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
